Graco Ecoquip & Brissle Blaster
Revolutionary wet abrasive blasting and alternative surface preparation systems that deliver professional results with significantly reduced dust, lower water consumption, and minimal environmental impact—ideal for confined spaces and eco-conscious projects.
Key Benefits
- Graco Ecoquip: wet vapor blasting for dust-free operations
- Brissle Blaster: innovative bristle-based surface preparation
- Achieves white-metal finish without traditional abrasives
- Perfect for refineries, petrochemical, and marine applications
- Genuine spares and consumables in stock
Graco EcoQuip

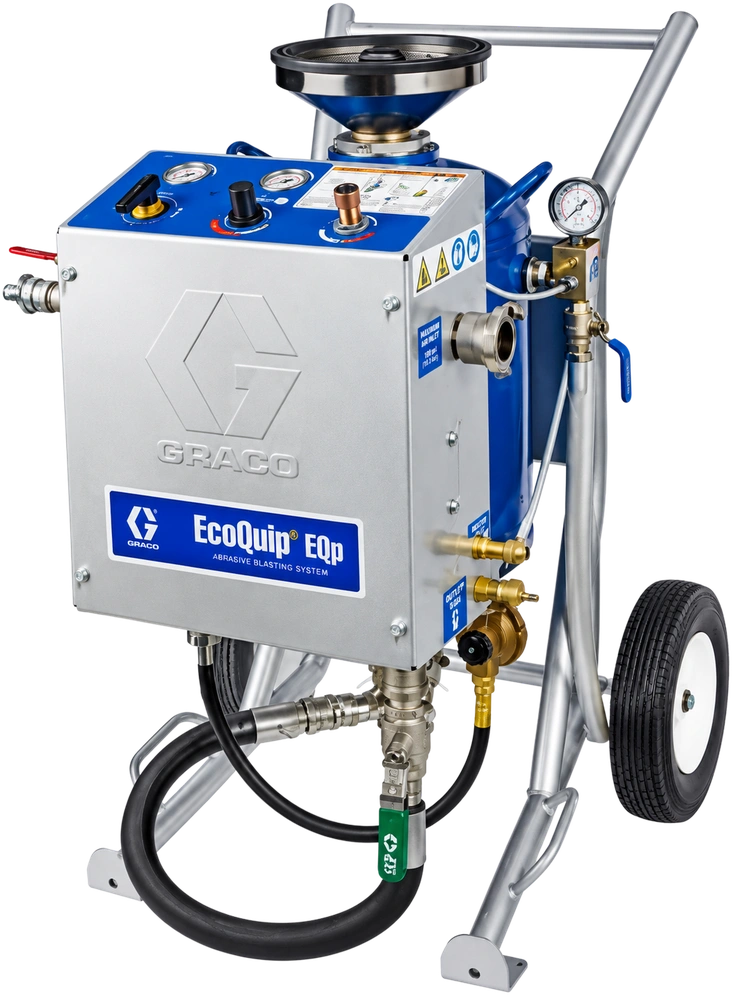

EcoQuip 2 Eqp
| TECHNICAL DATA | EcoQuip 2 EQp |
|---|---|
| Pot Volume | 2.0 cu ft (57 L) |
| Blast Circuit | 5/8 in (16 mm) |
| Max Compressed Air Flow | 300 cfm |
| Max Blast Pressure | 150 psi (10.3 bar) |
| Nozzled Supplied width | #5 or #6 |
EcoQuip 2 EQm
| TECHNICAL DATA | EcoQuip 2 EQp |
|---|---|
| Pot Volume | 3.5 cu ft (99 L) |
| Blast Circuit | 1.00 in (25 mm) |
| Max Compressed Air Flow | 500 cfm |
| Max Blast Pressure | 175 psi (12.1 bar) |
| Nozzled Supplied width | #7 |
EcoQuip 2 EQs
| TECHNICAL DATA | EcoQuip 2 EQp |
|---|---|
| Pot Volume | 6.5 cu ft (184 L) |
| Blast Circuit | 1.50 in (38 mm) |
| Max Compressed Air Flow | 900 cfm |
| Max Blast Pressure | 175 psi (12.1 bar) |
| Nozzled Supplied width | #8 High Perform |

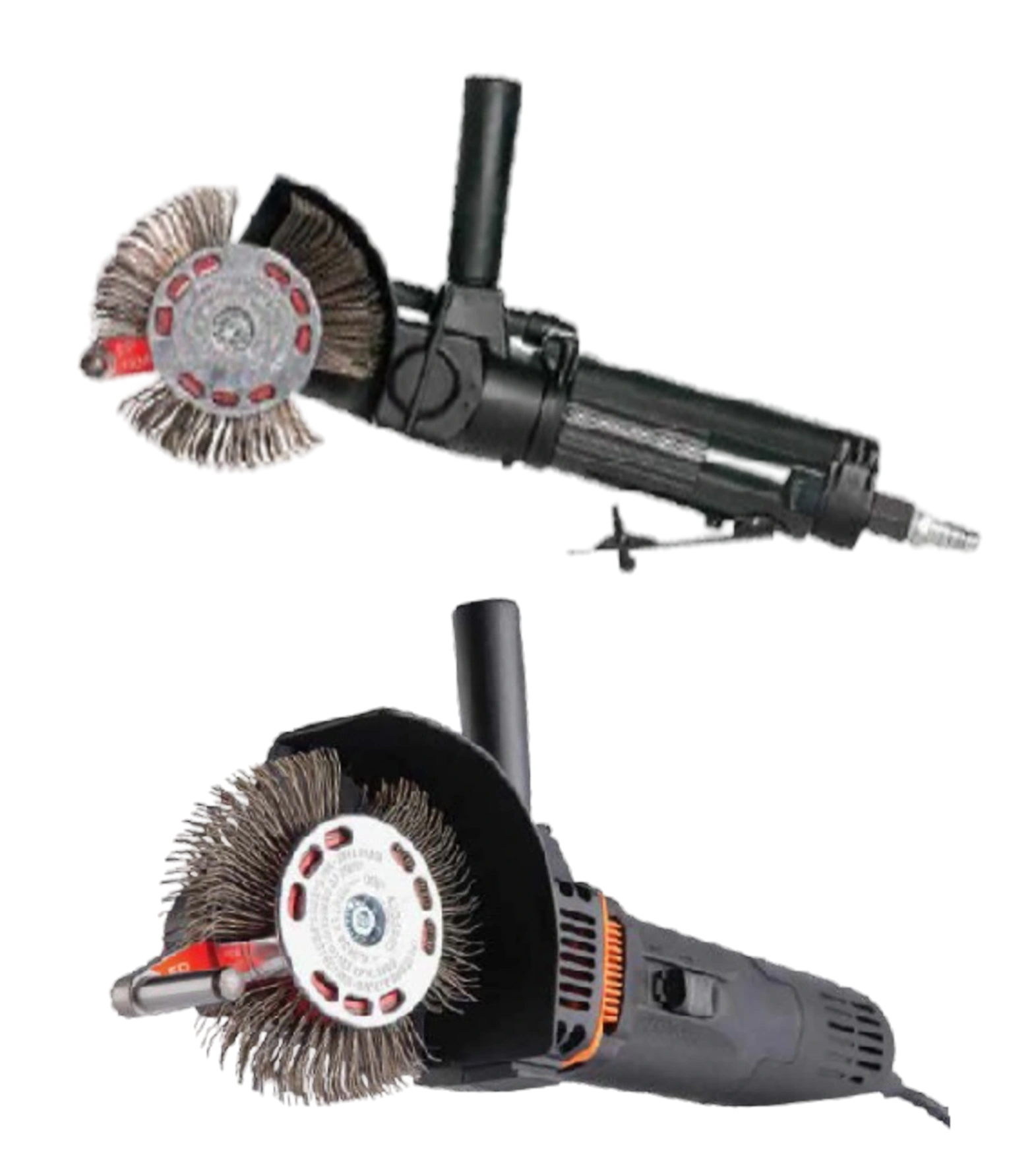

Bristle Blaster
Removes corrosion, coatings, mill scale and other contaminants.
- Without removing healthy material
- Without grinding or polishing
Suitable for spot repairs as well as larger areas where the other processes are prohibitive; does not use/produce hazardous material.
Generates anchor profiles ranging from 2.5 to 3.3 mils (65-85 micron) including on weld seams, edges, around bolts and on surface irregularities.
Cleans and profiles quickly and economically using safe and durable Bristle Blaster Belts; eliminating the need for costly abrasive blast equipment.

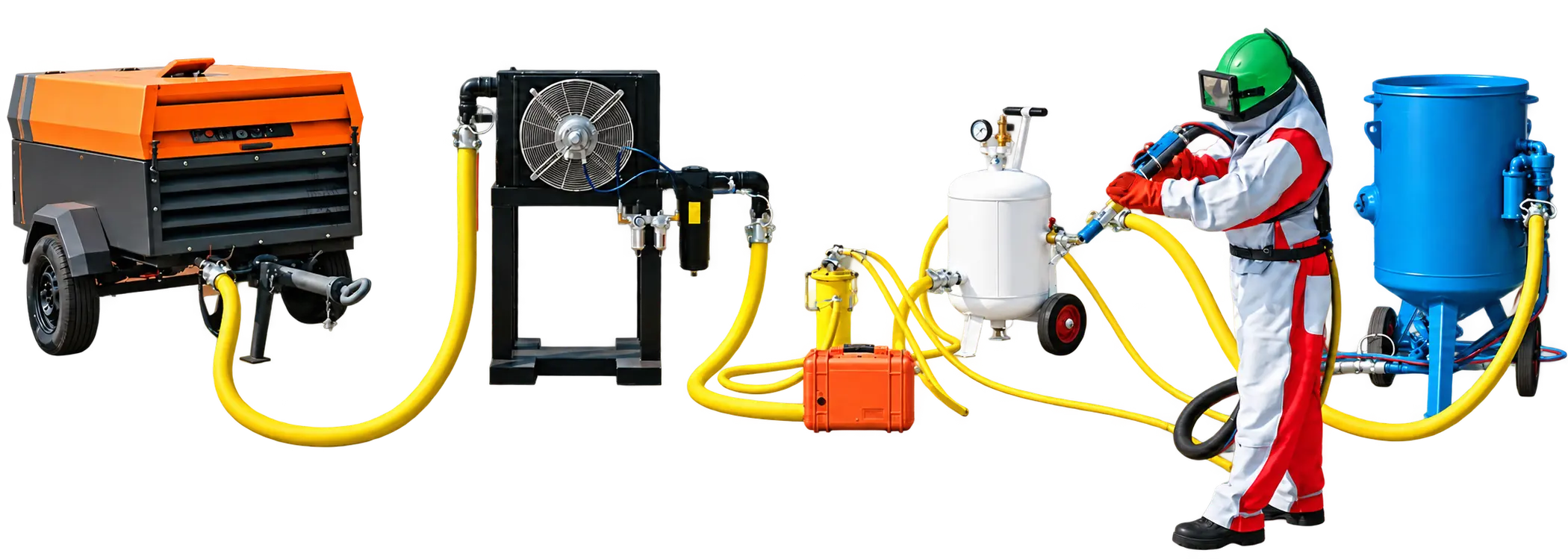

Blast System Setup
