Almen Strips & Almen Guage
An Almen Strip is a thin strip of SAE 1070 steel used to quantify the intensity of a shot peening process.
Almen strips are classified into 3 types: 'A', 'N' & 'C'.

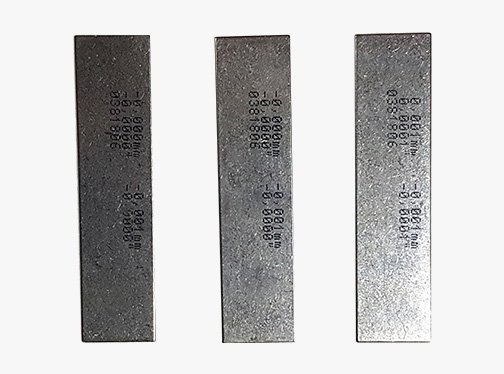

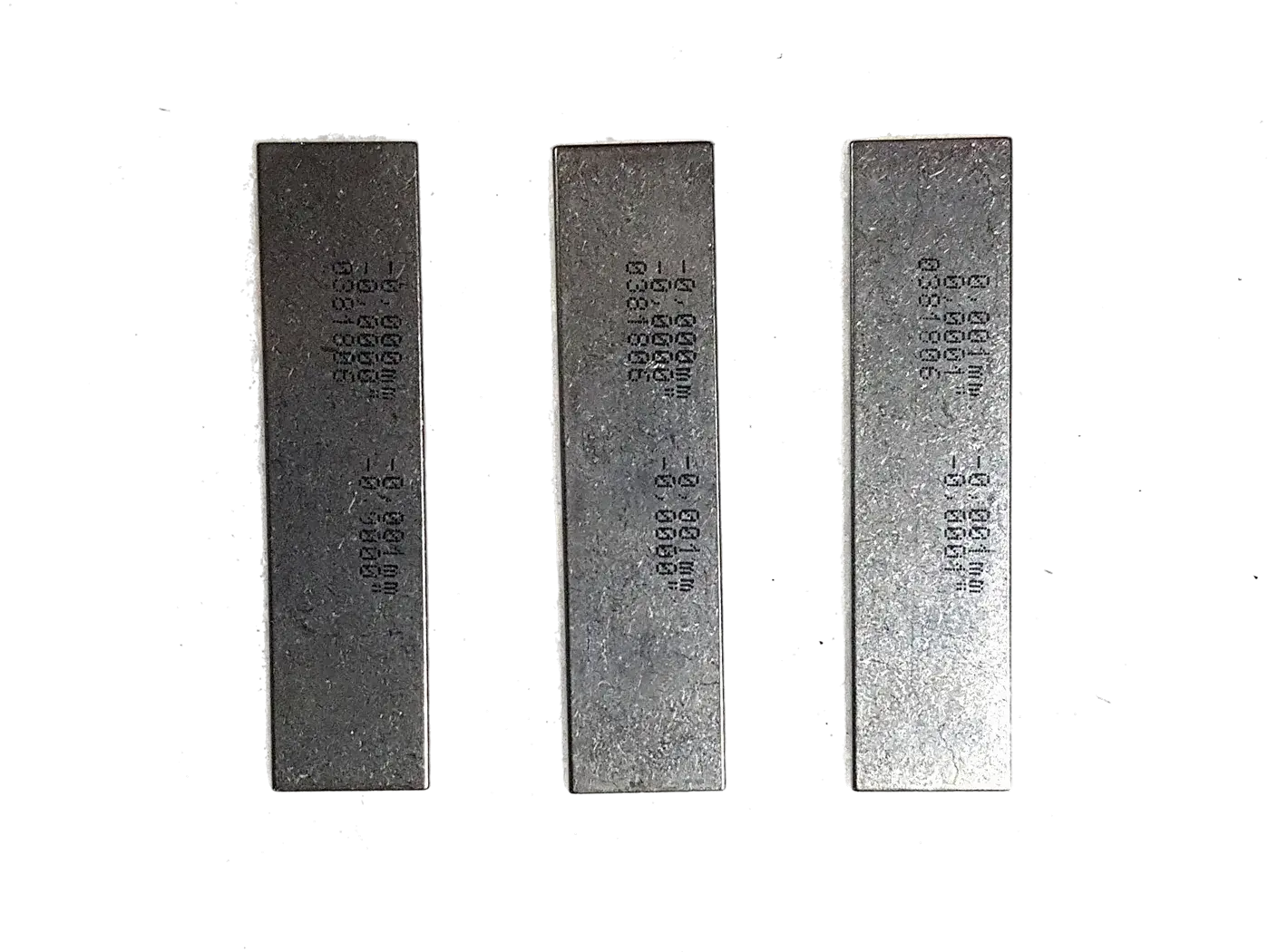

Almen Strips

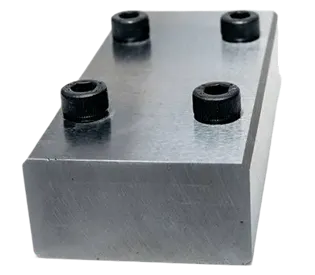

Almen Strip Holder
- Almen Strip "A" type is predominantly used for shot peening with cast shot or cut wire shot.
- Almen Strip "N" type are used usually for glass bead peen & ceramic bead peen.
- Almen Strip "C" type are used more rarely & are thicker than the other types.
The Almen strips are made from plain carbon steel SAE 1070 & have hardness about 45 HRC.
This test is widely used & the requirements for check are specified in standards. The most rigid requirements are applicable for Almen strips & checking devices (Almen gauges) used in the aerospace industry. The generic requirements can be found in SAE specifications.
INDOBLAST is the official Distributor for Almen Strips for Peening Accessories Switzerland.

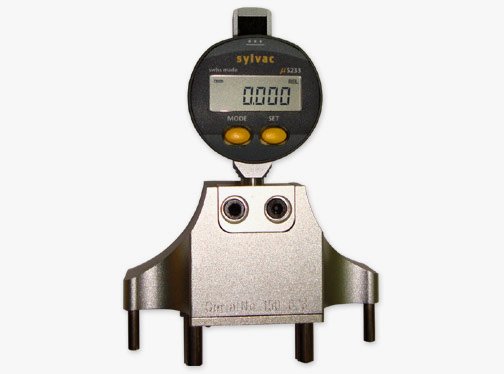

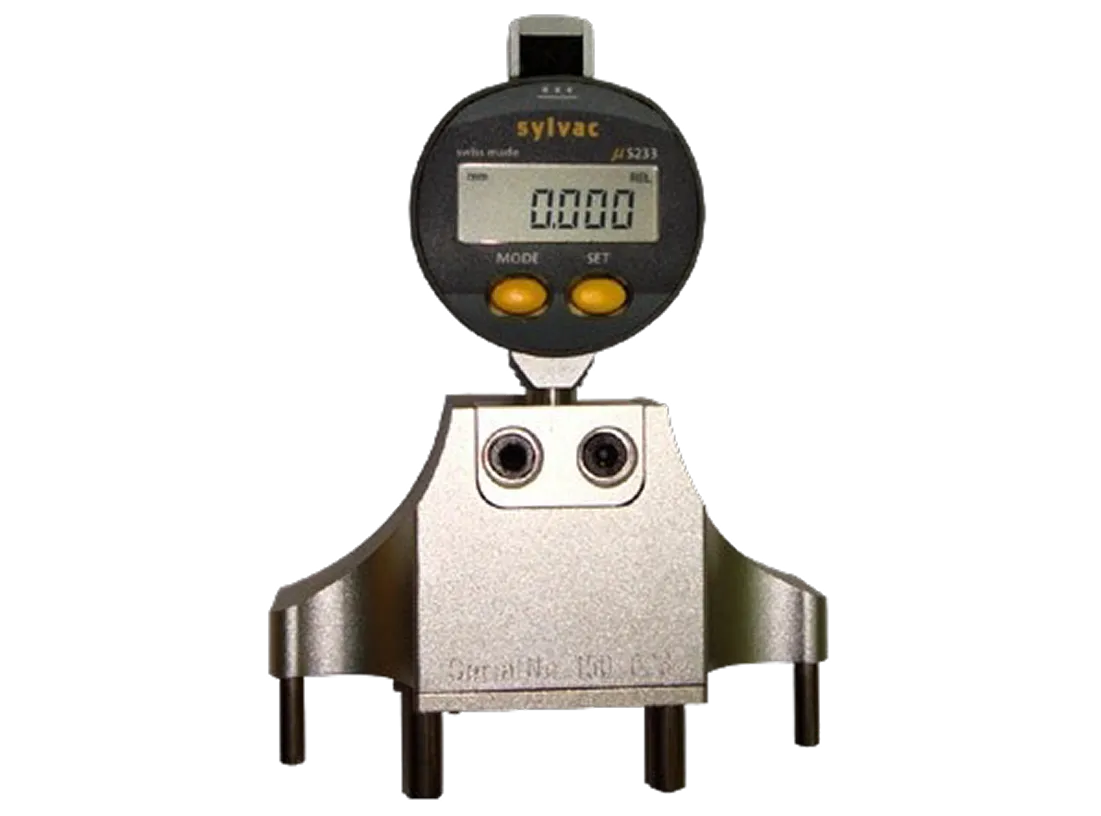

Digital Almen Guage
Almen Strips Guages

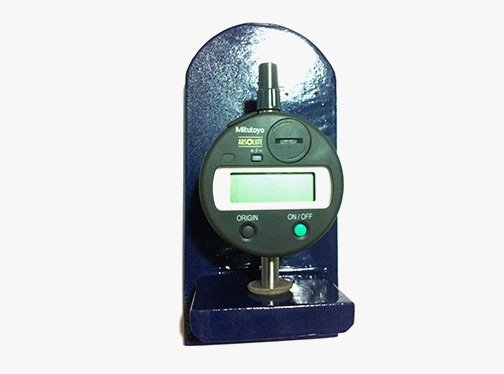

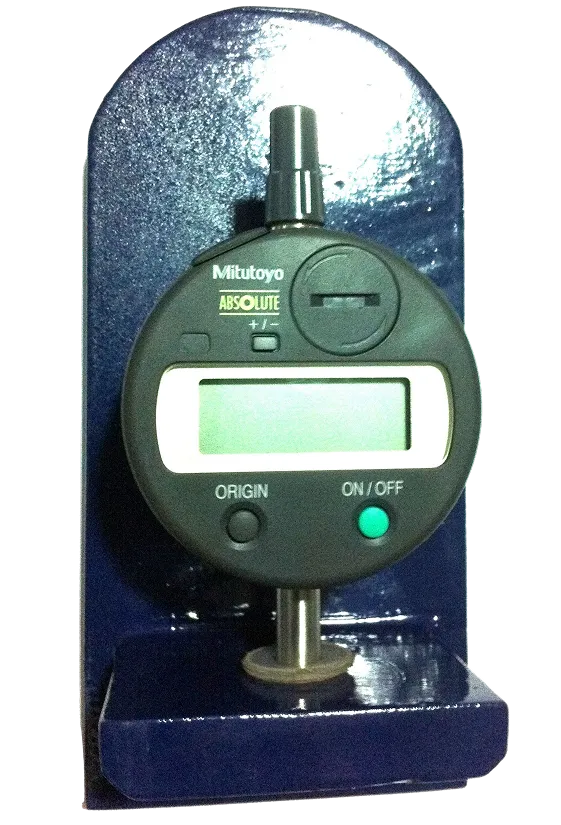

Digital Almen Guage

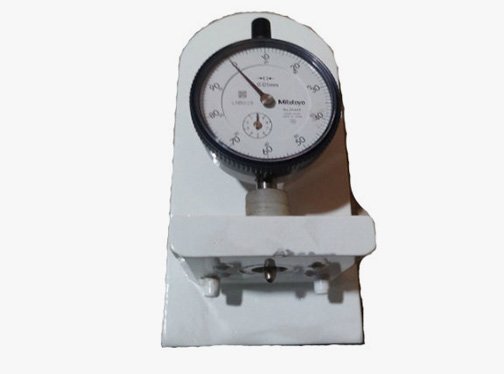

Analog Almen Guage
- Guages are available for A, N, C & aluminium strips
- Digital display (0.0001", 9.001mm resolution)
- SPC data port
- Water resistant Swiss made digital indicator
- Convenient replacement of battery (No data lost)
- Mechanical positioning system for strip
- Position of the ceramic balls is secured by tungsten carbide plate
- Support balls for strip made of ceramic (basically no wear)
- No magnets which attract metallic residues, shot etc
- Meets AMS-S-13165C & SAE J442 Dec-01
- Separate Curved calibration block included
- 1 year warranty, Made in Germany
- Up grade kit available
